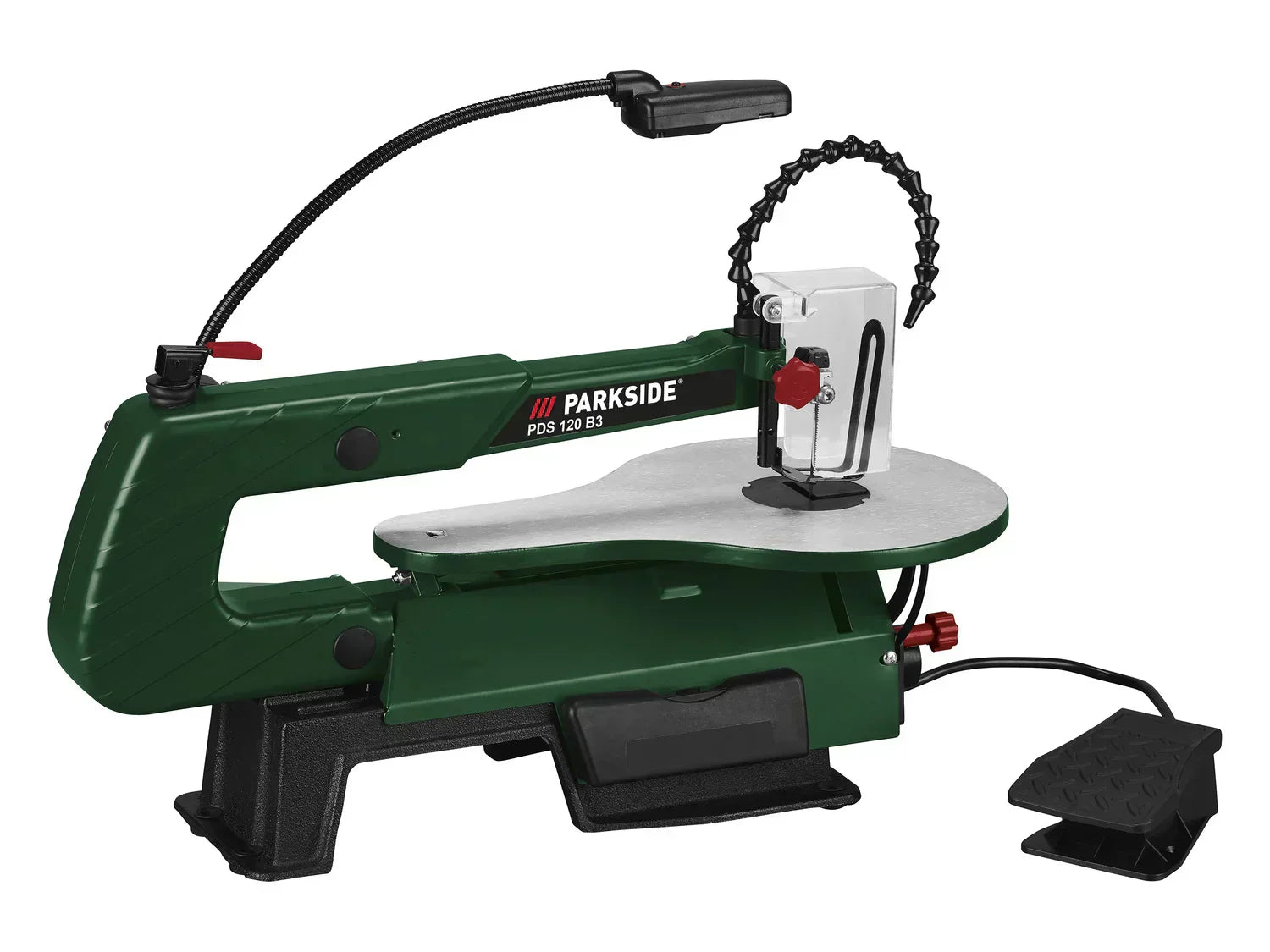

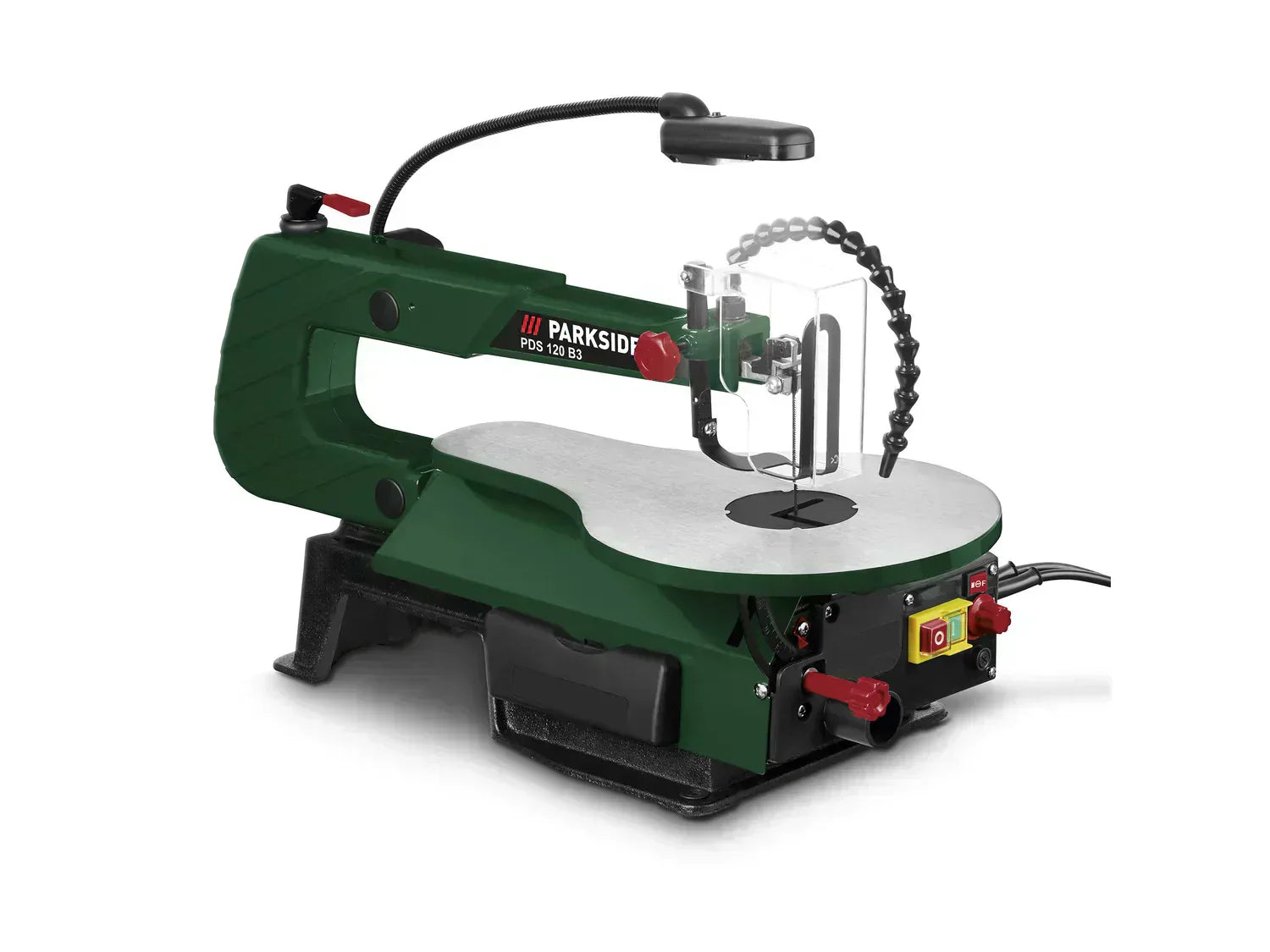

PK® Scroll Saw PDS 120 – 120W

Features

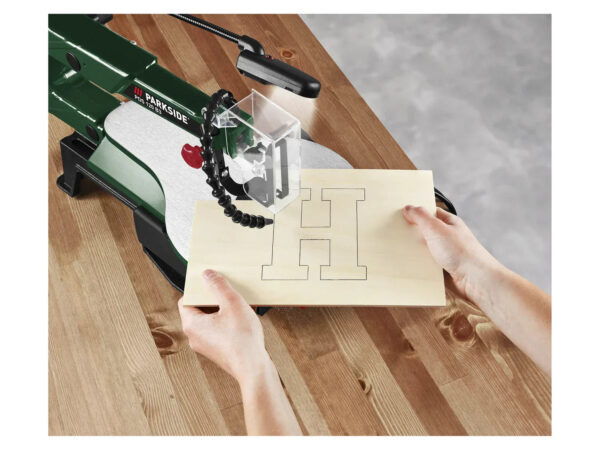

• Designed for fine and precise cutting tasks in wood, plastic, acrylic glass, or plaster

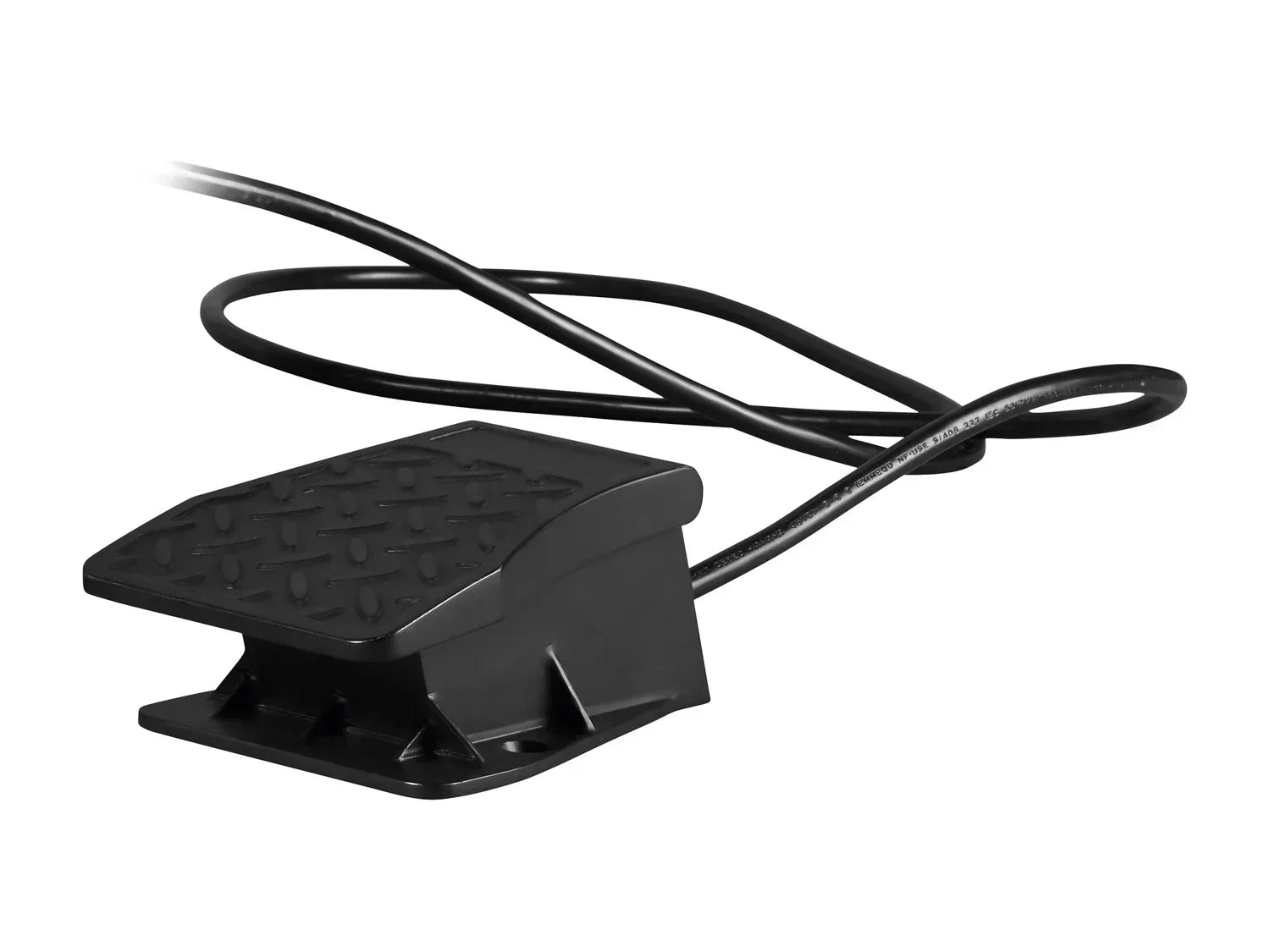

• Low-vibration motor with continuously adjustable stroke rate, selectable via rotary dial or foot pedal

• Independently switchable LED work light with flexible arm

• Adjustable blower for dust-free view of cutting lines

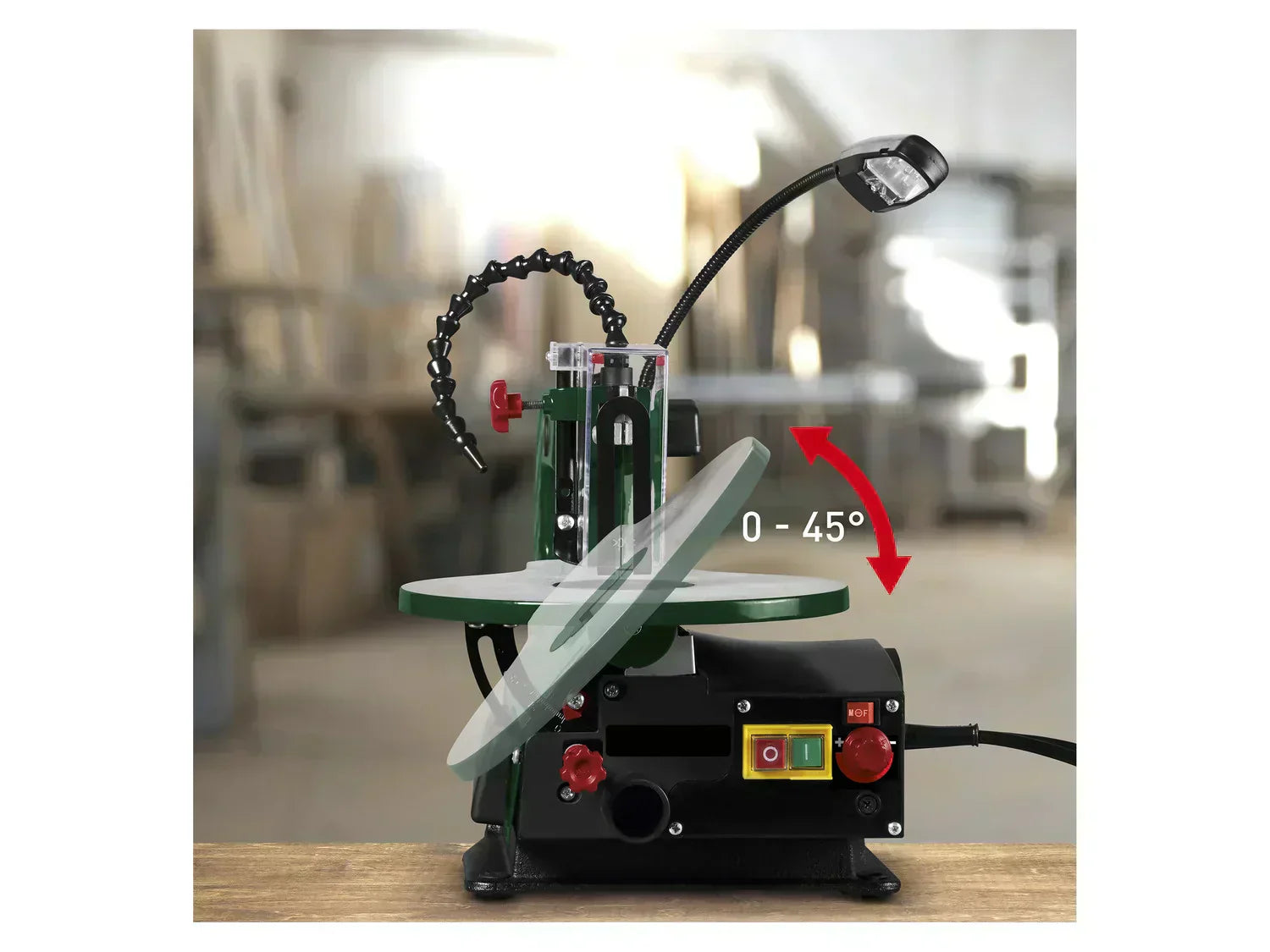

• Continuously tiltable aluminium worktable with angle scale for precise bevel cuts

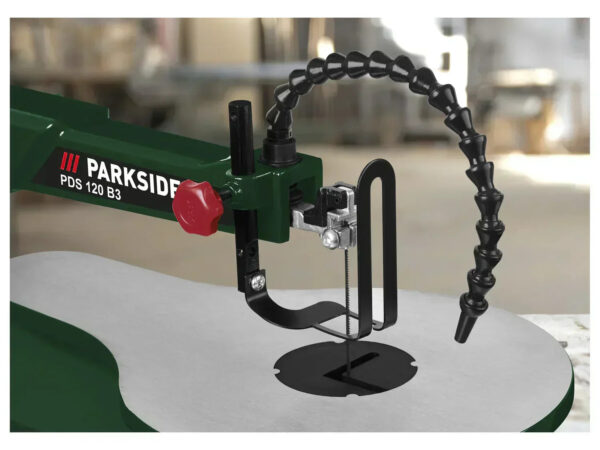

• Adjustable transparent safety guard

• Quick-release lever for fast blade changes

• Can be connected to an external dust extraction system

• Integrated storage compartment for saw blades

• Dustproof safety on/off switch

• Compatible with all standard jigsaw blades with universal shank

• Suitable for fixed bench mounting

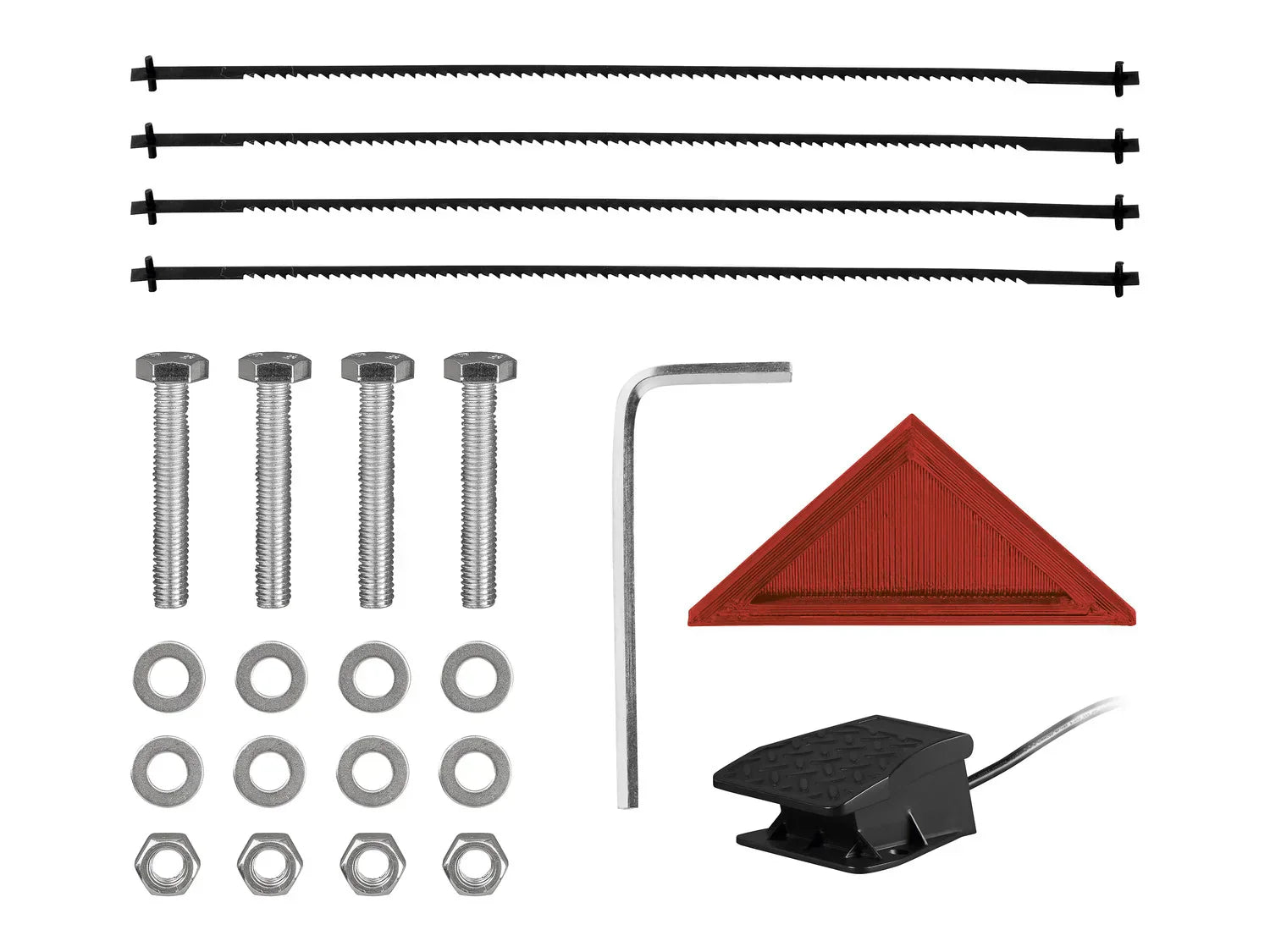

Included Accessories

• Notched scroll saw blades (134 mm)

• 1 hex key for blade replacement

• Mounting hardware for bench attachment

• 1 angle gauge for precise bevel adjustment

Technical Specifications

• Input power: 120 W (230 V)

• Stroke rate: 500 – 1700 rpm

• Stroke length: 12 mm

• Bevel angle: 0 – 45°

• Cutting height:
   • Max 50 mm at 90°
   • Max 22 mm at 45°

• Cutting depth: max 406 mm

• Dust extraction port inner diameter: approx. 35 mm

• Blade length: 134 mm

Materials

Steel, aluminium, plastic

Dimensions

• Scroll saw: approx. 63 x 29.5 x 37 cm

• Worktable size: approx. 25.5 x 41.5 cm

• Power cable length: approx. 2 m

Weight

Approx. 13.2 kg
